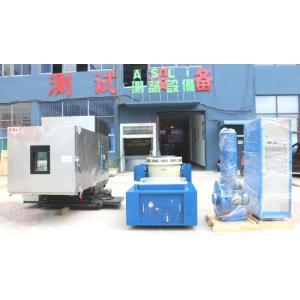

Good Price Industrial Electromagnetic Shaker Transport Simulation
Vibration Test Table Equipment
Features with Electromagnetic Shaker Transport Simulation Vibration
Test Table:
1. Well-designed dynamic circle skeleton, with a higher stage axial
resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact
structure and rational.
3. Rocker Rod roller bearings straight and import-oriented
composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the
installation of mobile convenience.
5. Advanced technology move around the system to ensure that the
dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small
balloon, raising the vibration table capacity, improve
low-frequency performance.
Technical Parameters with Good Price Industrial Electromagnetic
Shaker Transport Simulation Vibration Test Table Equipment:
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated displacement (p-p)mm | Max. Loading (Kg) | moving coil(Kg) | Dimension of Moving coil(mm) |
| ES-1 | 1000 | 1000 | 3-3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
| ES-2 | 2000 | 2000 | 3-3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
| ES-2a | 2000 | 2000 | 3-3500 | 300 | 1.6 | 40 | 70 | 8 | Φ230 |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3-2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3-2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3-2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3-1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
Technical Parameters of Vertical Vibration Table:
| Model | Weight (kg) | Max. Frequency (Hz) | Bench Size |
| VT300 | 10 | 2000 | Φ300 |
| VT400 | 16 | 2000 | Φ400 |
| VT500 | 25 | 1500 | Φ500 |
| VT600 | 35 | 1000 | Φ600 |
| VT0303 | 15 | 2000 | 300×300 |
| VT0404 | 22 | 1500 | 400×400 |
| VT0505 | 30 | 500 | 500×500 |
| VT0606 | 58 | 350 | 600×600 |
| VT0808 | 140 | 350 | 800×800 |
| VTl010 | 180 | 350 | 1000×1000 |
| VT1212 | 250 | 350 | 1200 × 1200 |
| VT1212 (Round bench) | 220 | 350 | Φ1200 |
Technical Parameters of Horizontal Vibration Table:
| Model | Bench Size (mm) | Frequency Range (Hz) | Weight of Moving Parts (kg) |
| LT0303 | 300×300×22
300×300×26
300×300×30 | 5-1000
5-1500
5-2000 | 6.6
7.8
9.0 |
| LT0404 | 400×400×22
400×400×26
400×400×30 | 5-l000
5-1400
5-2000 | 11.2
13.2
16.0 |
| LT0505 | 500×500×25
500×500×30
500×500×35 | 5-1000
5-1500
5-2000 | 19.3
23.1
27.0 |
| LT0606 | 600×600×25
600×600×30
600×600×40 | 5-1000
5-1200
5-2000 | 27.5
33.0
45 |
| LT0707 | 700×700×25
700×700×30
700×700×35 | 5-800
5-1000
5-1500 | 36.8
44.2
52 |
| LT0808 | 800×800×30
800×800×40
800× 800×45 | 5-1000
5-1500
5-2000 | 57.7
76.9
86.5 |
| LT 1010 | 1000× 1000×30
1000× 1000×40
1000× 1000×50 | 5-1000
5-1300
5-1500 | 89.1
118.8
147 |
| LT 1212 | 1200× 1200×30
1200× 1200×40
1200× 1200×50 | 5-800
5-1100
5-1400 | 126
168
210 |
Application:
We are manufacturer ofGood Price Industrial Electromagnetic Shaker Transport Simulation
Vibration Test Table Equipment, High Frequency Vibration Test Machine series products, adopted
the 'double-magnetic circuit structure',' self-generated skeleton
action circles', 'Airborne Support’ and 'roller bearings and linear
guidance', 'trunnion isolation’ advanced modern technology and
special technology, can be completed in X,Y,Z three-axis sinusoidal
vibration test and broadband random vibration tests, to be
completed by the classical (half - sine, trapezoidal, saw tooth
wave) pulse and shock response spectrum test. These products are
widely used in national defense, weapons, aviation, aerospace,
communications, electronics, electrical appliances, communications,
home appliances and other fields.
Kris
Email:sales5@aslitesting.com or sales2@aslitesting.com
Skype: sales2@aslitesting.com(or ID: kriszhang2016)
Whatsapp:0086 136 0238 4360
If you have any question about those Good Price Industrial
Electromagnetic Shaker Transport Simulation Vibration Test Table
Equipment ,please contact with us , thank you .
