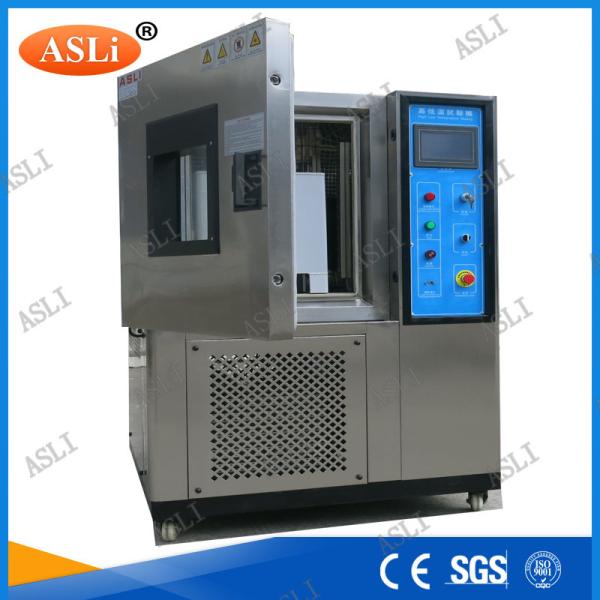

High Low Temperature Cycling Chamber, Stability Environment Test
Instrument
Application:
High Low Temperature Cycling Chamber, Stability Environment Test
Instrument is used to test various types of materials for their
tolerances of heat, cold, dry, humidity. It is applied for quality
inspection for all types of electronic products, electric
appliance, and products from communication, instrument, automobile,
plastic, metal, food, chemical, building materials, medical and
aerospace industries.
Inner door with operation hole (optional)
Entrance hole for test wire, Dia. 50mm or 100mm
Sample Shelves, two layers
RS-232 or RS-485 communication Interface
High Low Temperature Cycling Chamber Technical Parameters:
| Model | HL-80(A~F) | HL -150(A~F) | HL -225(A~F) | HL -408(A~F) |
Internal Dimensions
W*H*D (mm) | 400*500*400 | 500*600*500 | 600*750*500 | 600*850*800 |
External Dimensions
W*H*D (mm) | 950*1650*950 | 1050*1750*1050 | 1200*1900*1150 | 1200*1950*1350 |
| Temperature Range | Low Temperature(A:25degree C B:0degree C C:-20degree C D:-40degree
C
E:-60degree C F:-70degree C )
High Temperature 150degree C |
Analytic Accuracy/
Distribution Uniformity
of Temperature | 0.1degree C /±2.0degree C |
Control Accuracy of
Temperature | ±0.5degree C |
Temperature Rising/
Falling Velocity | Temperature rising approx. 0.1~3.0degree C /min ; temperature falling approx. 0.1~1.5degree C /min; ( The Falling Speed Rate Min.1.5degree C per minute is a special
optional condition) |
Internal and External
Material | Material of the inner box is SUS 304# stainless steel,of the outer
box is
stainless steel or SEE cold-rolled steel with paint coated. |
| Insulation Material | Resistant to high temperature, high density, formate chlorine,
ethyl acetum
foam insulation materials |
| Cooling System | Wind cooled or water cooled,single segment compressor for -40degree
C ,
double segment compressor for -70degree C |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor,
high and
low voltage coolant protection switch, Over-humidity and
over-temperature
protection switch, fuses, fault warning system |
| Optional Accessories | Inner door with operation hole(Optional),
Recorder(optional),Dehumidifier |
| Compressor | French Tecumseh Brand,Germany Bizer Brand |
| Power | AC 220V, 1Phase 3 Lines,50/60HZ ; AC 380V ,3 Phase 5 Lines,50/60HZ |
| Approx. Weight (Kg) | 150 | 180 | 250 | 320 |
Stability Environment Test Instrument Features:
1. Graceful appearance, circularly shaped body, surface treated
with mist strips, and plane handle with no reaction. Easy to
operate, safe and reliable.
2. Rectangular double-paned viewing window for observation of
sample under test, with interior lights
3. Double-layer-insulated airtight doors, able to insulate the
internal temperature effectively.
4. Water supply system that is externally connectable, convenient
for refilling water into the humidifying pot and automatically
recyclable.
5. French Tecumseh brand is used as compressor, with environment
friendly refrigeration R23 or R404A
6. LCD display screen is used for the control unit, capable of
displaying set point and actual value at the same time
7. The control unit has the functions of multiples segment program
editing function
8. Quick or ramp rates control of temperature and humidity.
9. Casters are provided for ease of mobility, with strong
positioning screws.
Our advantages
1.Professional technology support.
2.Full experience of large numbers containers loading in Chinese
sea port.
3.Fast shipment by reputed shipping line.
4.Best service after shipment with emails.
5.We are professional test equipment manufaturer in China with
excellent experience and skills, also have best quality products
Our concept
1.Client is first. We are trying to bring maximum profit to our
clients and offer best quality products
2.Credibility is the most important.
3.Quality control is our life.
4.Great sense of responsibility.
ASLi main test equipments:
Environmental chambers, temperature (humidity) chamber,Thermal
shock chamber, PCT /Hast chamber (Highly accelerated stress test
chamber),ESS chamber,High Low Temperature Cycling Chamber,
Stability Environment Test Instrument, High Low Temperature
Electronic Thermal Shock Test Chamber, Walk in stability
chamber,Vacuum oven,electrodynamic vibration shaker,mechanical
shock tester,environmental combined vibration chamber,etc

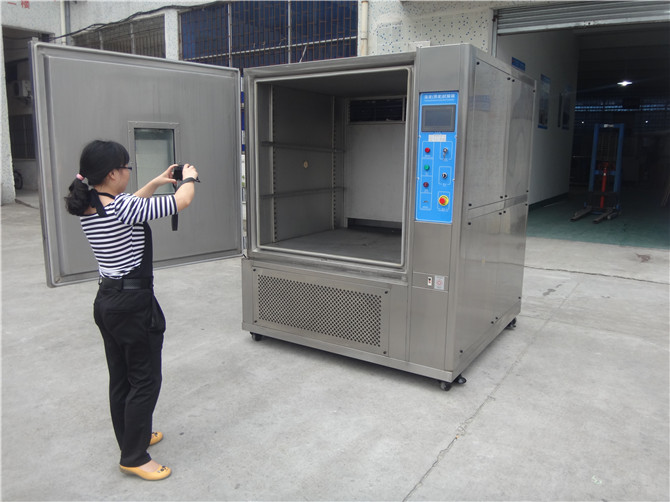

More High Low Temperature Cycling Chamber, Stability Environment
