desktop mini Low High Temperature Humidity Climate Control
Stability Chamber
desktop mini Low High Temperature Humidity Climate Control
Stability Chamber Application:
Desktop Temperature Humidity Test Chamber, Temperature Humidity
Climatic Chamber is used to test various types of materials for
their tolerances of heat, cold, dry, humidity, and applied for
quality inspection for all types of electronic products, electric
appliance, and products from communication, instrument, automobile,
plastic, metal, food, chemical, building materials, medical and
aerospace industries.
desktop mini Low High Temperature Humidity Climate Control
Stability Chamber technical parameters:
| Model | DTH-80A | DTH-80B | DTH-80C |
| Internal Dimensions WxHxD (mm) | 400X500X400 |
| External Dimensions WxHxD (mm) | 1150X1150X1050 |
| Temperature Range | (RT+10℃) ~+150℃ | 0~+150℃ | -20 ~+150℃ |
| Humidity Range | 20%~98%R.H. |
Indication Resolution/ Distribution Uniformity of Temperature and Humidity | 0.1℃; 0.1% R.H / ±2.0℃; ±3.0% R.H. |
Control Accuracy of Temperature and Humidity | ±0.5℃; ±2.5% R.H. |
| Temperature Rising/Falling Velocity | Temperature rising approx. 0.1~3.0℃/min; temperature falling
approx. 0.1~1.5℃/min; |
| Interior and Exterior Material | Interior material is SUS 304# stainless steel,exterior is stainless
steel or SEE cold-rolled steel with paint coated. |
| Insulation Material | Resistant to high temperature, high density, formate chlorine,
ethyl acetum foam insulation materials |
| Cooling System | Wind cooling |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor,
high and low voltage coolant protection switch, over-humidity and
over-temperature protection switch, fuses, fault warning system,
water short storage warning protection |
| Optional Accessories | Inner door with operation hole(Optional), Recorder(optional),Water
Purifier |
| Compressor | French Tecumseh Brand, Germany Bizer Brand |
| Power | AC 220V(±10%), 1∮ 3 Lines , 50/60HZ; |
| Weight (Kg) | 75 |
Inner door with operation hole (optional)
Traveling cable port, Dia.50mm or 100mm
Sample Shelves, two layers
RS-232 or RS-485 communication
desktop mini Low High Temperature Humidity Climate Control
Stability Chamber features :
1. Graceful appearance, circularly shaped body, surface treated
with mist strips,.
Rectangular double-paned viewing window for the observation of
sample under test,with interior lights.
3. Double-layer-insulated airtight doors, able to insulate the
internal temperature effectively.
4. Water supply system that is externally connectable, convenient
for refilling water into the humidifying pot and automatically
recyclable.
5. French Tecumseh brand is used as compressor, with environment
friendly refrigeration R23,R404A.
6. LCD display screen is used for the control unit, capable of
displaying set point and actual value at the same time
7. The control unit has the functions of multiples segment program
editing, and of quick or ramp rates control of temperature and
humidity.
8. Casters are provided for ease of mobility, with strong
positioning screws.
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past
28 years, we devoted to simulation environmental testing equipment
and Mechannical vibration and shock testing machine.Desktop
Temperature Humidity Test Chamber, Temperature Humidity Climatic
Chamber is one of our star product , and we had obtained the CE
certification for this machine .

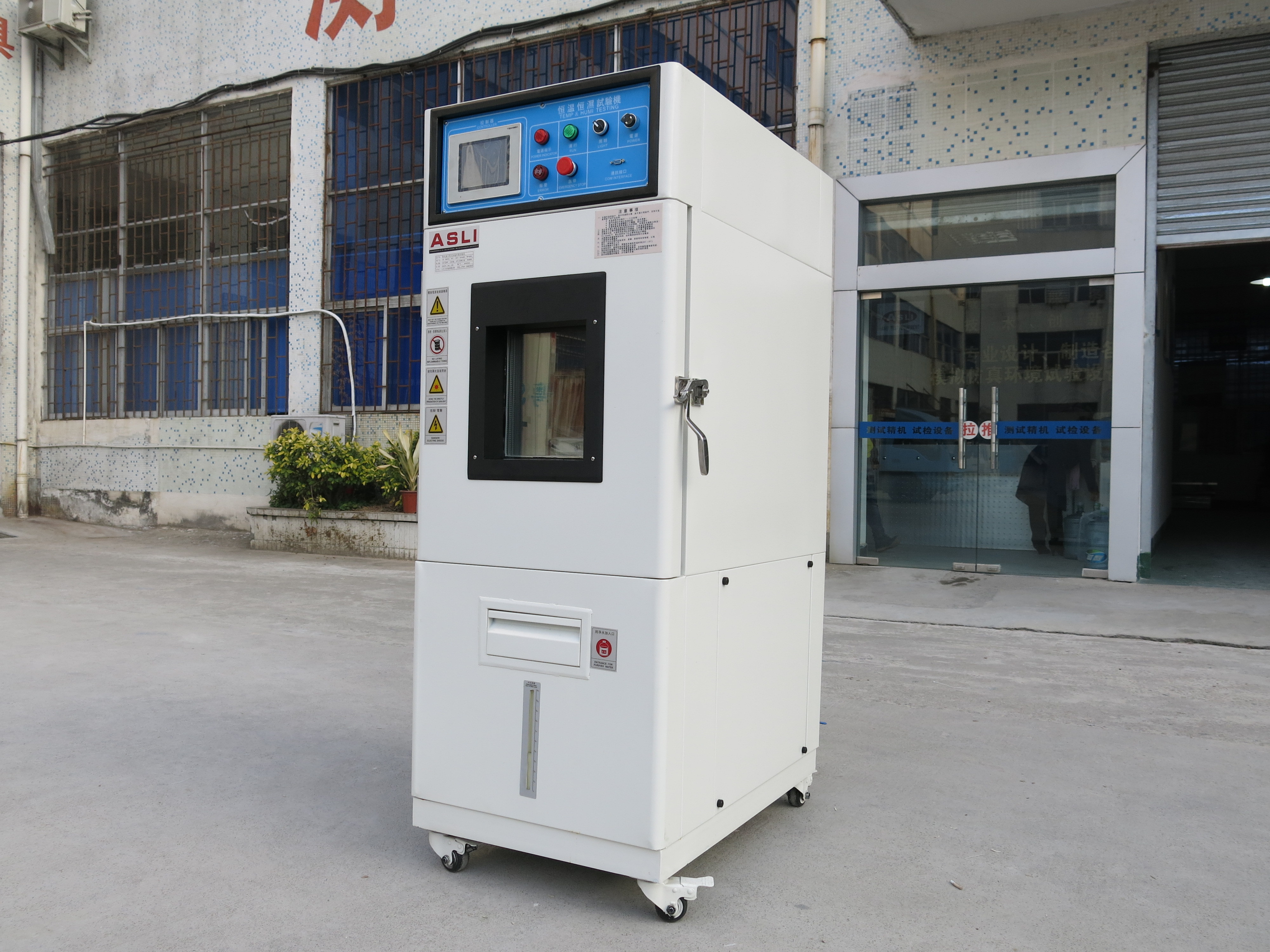

Chamber's Front View:
Package: PP film first, and then 10mm foam between machine and the case,
and outside is standard export plywood case.
Warranty: one year free warranty for whole set machine,lifelong time
maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
Certificate of these the machine:
China official 3rd party calibration report
CE certiification
