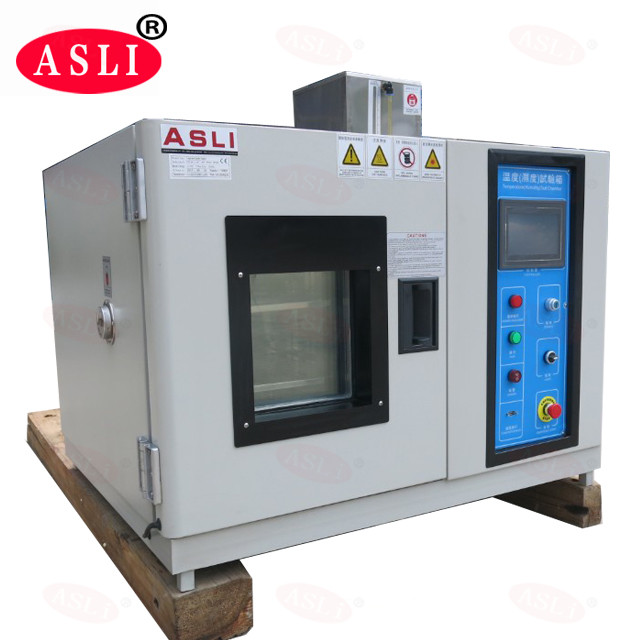

-20 to 150 Degree Constant Temperature Humidity Chamber Mini Desktop

    Buy cheap -20 to 150 Degree Constant Temperature Humidity Chamber Mini Desktop from wholesalers

    Buy cheap -20 to 150 Degree Constant Temperature Humidity Chamber Mini Desktop from wholesalers
    • Buy cheap -20 to 150 Degree Constant Temperature Humidity Chamber Mini Desktop from wholesalers
    • Buy cheap -20 to 150 Degree Constant Temperature Humidity Chamber Mini Desktop from wholesalers
    • Buy cheap -20 to 150 Degree Constant Temperature Humidity Chamber Mini Desktop from wholesalers

    -20 to 150 Degree Constant Temperature Humidity Chamber Mini Desktop

    Ask Lasest Price
    Brand Name : ASLI
    Model Number : TH
    Certification : CE, ISO , SGS
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 30 sets per month
    Delivery Time : 25-30 working days
    • Product Details
    • Company Profile

    -20 to 150 Degree Constant Temperature Humidity Chamber Mini Desktop

    -20 to 150 degree mini constant temperature humidity chamber


    ASLI provides temperature cycling test chambers and humidity chambers. Our temperature and humidity test chambers are available in a variety of sizes and configurations, including benchtop / vertical/ walk in constant temperature humidity chambers. Temperature Range: -70°C to +180°C; Humidity range:10% to 98%R.H.


    Related Standard:


    IEC600628 2-1/2/3/30, GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566

    Uses:


    Temperature control and display unit
    Humidity control and display unit
    Can perform long time 85 °C/85 % RH tests
    Safety protection system
    Easy operation friendly interface


    Characteristics:


    1.Constant Temperature Humidity Chamber Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
    2.Constant Temperature Humidity Chamber control temperature&humidity well-distributed, precisely and steady.
    3. Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.


    Technical Sheet


    ModelDTH-80ADTH-80BDTH-80C

    Internal Dimensions

    WxHxD (mm)

    400X500X400

    External Dimensions

    WxHxD (mm)

    1150X1150X1050
    Temperature Range(RT+10°C) ~+150°C0~+150°C-20 ~+150°C
    Humidity Range20%~98%R.H.

    Indication Resolution/

    Distribution

    Uniformity of

    Temperature

    and Humidity

    0.1°C; 0.1% R.H / ±2.0°C; ±3.0% R.H.

    Control Accuracy

    of Temperature

    and Humidity

    ±0.5°C; ±2.5% R.H.

    Temperature Rising/

    Falling Velocity

    Temperature rising approx. 0.1~3.0°C/min; temperature falling approx.

    0.1~1.5°C/min;

    Interior and Exterior Material

    Interior material is SUS 304# stainless steel,exterior is stainless steel or

    SEE cold-rolled steel with paint coated.

    Insulation Material

    Resistant to high temperature, high density, formate chlorine, ethyl

    acetum foam insulation materials

    Cooling SystemWind cooling
    Protection Devices

    Fuse-free switch, overloading protection switch for compressor, high and

    low voltage coolant protection switch, over-humidity and over-temperature protection

    switch, fuses, fault warning system, water short

    storage warning protection

    Optional AccessoriesInner door with operation hole(Optional), Recorder(optional),Water Purifier
    CompressorFrench Tecumseh Brand, Germany Bizer Brand
    PowerAC 220V(±10%), 1& 3 Lines , 50/60HZ;
    Weight (Kg)

    75
